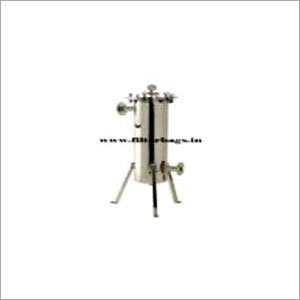

SS Bag Filter Housing SS Bag Filter Housing is designed for optimum filtration performance. The range of SS Bag Filter Housing provides filtration solution for a broad variety of fluid applications in the process industry. SS Bag Filter Housing is particularly useful for filtering large volumes of high viscosity liquids. SS Bag Filter Housing is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, and choice of end connections. The internal supports ensure that bags will not burst, as high differential pressures build up during operation.
Operation
Unfiltered fluid enters the housing and is distributed evenly around the filter bags. Filtration takes place from inside to outside. Solids are collected on the inside of filter bag for easy removal. The filtered fluid then exits through the outlet pipe.
Features & Benefits
- High flow rates up to 2000 m3/hr
- Low pressure drop and Low down time
- High dirt holding capacity
- Large-area, heavy-duty baskets
- Custom design services
- Quick opening Tri Clovers & Fly nut design
- Suitable for PP Collar, Rigid Ring & Snap Band Bags
- Covers are O-Ring sealed
- Easy to operate & low maintenance
- Housings are permanently piped
- Positive sealing arrangement to avoid bypassing
- High temperature & High pressure design are available
- All housings made from SS 316 L, SS 316 & SS 304 are mirror polished to resist adhesion of dirt and scale
- Multiple bag filter / Duplex bag filter / Jacketed bag filter unit designs are available
- Special option include filter bag hold-down devices, sanitary construction different outlet connections, higher pressure ratings, extra-length legs, heat jacketing and adapters for holding filter bags
- Carbon steel housings are sand blasted, epoxy coated & finally painted with two coats of synthetic enamel
Single Bag filters system suitable for
- Ø 4" x 10" Long Filter Bag and Ø 4" x 20" Long Filter Bag
- Ø 7" x 17" Long Filter Bag and Ø 7" x 32" Long Filter Bag
Multiple bag filters system suitable for
- Nos. Of Ø 7" x 32" Long Filter Bag
- Nos. Of Ø 7†x 32" Long Filter Bag
- Nos. Of Ø 7" x 32" Long Filter Bag
- Nos. Of Ø 7" x 32" Long Filter Bag
- Nos. Of Ø 7" x 32" Long Filter Bag
- Nos. Of Ø 7" x 32" Long Filter Bag
- Nos. Of Ø 7" x 32" Long Filter Bag
- Nos. Of Ø 7" x 32" Long Filter Bag
Material of construction
- SS 316
- SS 316L
- SS 304
- Alloy Metals
- Polypropylene
- Mild Steel
- Teflon Lining on Any Metal
- Rubber Lining on Any Metal
- Lead Lining on Any Metal
- Carbon Steel (All Grade)
Bag Filter Suitable for Bag Configuration
- PP Collar Bag
- Snap Band Bag
- Rigid Ring Bag
- Rubber Collar Bag
- Flange Collar Bag
Gasket/O Ring Material
- Silicone
- Buna N
- EPDM
- Neoprene
- Viton
- PTFE
- Nitrile
End Connections Available
- NPT / BSP Threaded
- Tri Clover Adaptors
- DIN Standard
- Flanged Table E / Table F
- ANSI B 16.5 Flanged
- SMS /Dairy End Connection
|
